<Product Description>

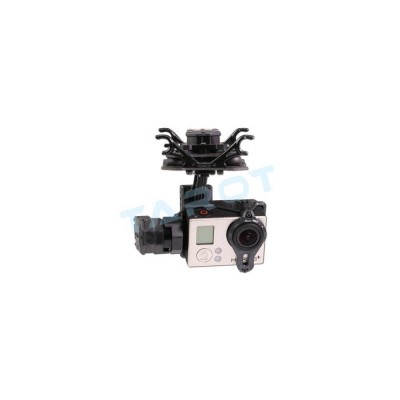

TAROT 3X gimbal System which put all of Tarot high-End Technology with integrated PTZ
Made of aluminum and plastic/Carbon combined structure, bringing light weight and stability of the strongest, even in extremely harsh environments, also accurate to lock the camera to maintain a high degree of stability, the output of the ultimate experience of fine industrial picture is best choice for professional aerial photography and video enthusiasts.
<Product Features>
- Support PC Interface GUI PROGRAM
- Support Point follow mode (PF)
- Support First-person mode (FPV)
- Built-in Independent IMU modules
- TAROT PTZ dedicated servo drive module
- AV Output Interface
- Wide Range Voltage Input Support(2S~6S)
- Support Conventional Receiver / S-Bus receiver / DSM Satelite Receivers
- Peripheral equipment : Support Camera Type: GOPRO HERO3 / HERO4 same size and weight of the camera
- Input Power: 2S ~ 6S LiPo battery
- Mechanical / lectrical characteristics: : Angle control accuracy: ± 0.02 °
- Maximum controllable speed : Pitch direction (TILT): ± 200 ° / s
- Controllable range of rotation : Pitch direction (TILT): -120 ° to + 15 °
- Operating Current: 30mA (@ 25V) 50mA (@ 12V)
- Stall Current: 350mA (@ 25V) 700mA (@ 12V)
- Working temperature: -20 ° C ~ 50 ° C
- Weight: 178g
- Size: 99mm × 88.5mm × 105.6mm
- PC GUI Program requirements : Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
<Specifications>
- Triaxial brush head × 1
- PTZ control module × 1
- PTZ and PTZ main body cable × 1
- 5V output, the receiver and video cable × 1
- USB module × 1
- Flight control cable × 1
- Box × 1
