<Product Introduction>
Tarot FLIR PTZ is designed for high-sensitivity thermal imaging camera custom integrated TAROT series PTZ all high-end technology, with full CNC Machined structure overall industrial design, lightweight and brings the most strong stability.
Breaking the limitations of light and space, you can capture clear, precise thermal image anywhere.
Tarot FLIR thermal imaging camera will give a new dimension of vision, so you can quickly search large areas, or difficult to climb close to the detection device.
Work more efficiently, easily and securely.
<Features>
- Applicable Camera Type: FLIR Thermal Imaging Camera FLIR 336Pro, 640Pro
- Input power: 3S-6S Li (11V-26V)
- Operating current: 30mA (@ 25V) / 50mA (@ 12V)
- Stall current: 350mA (@ 25V) / 700mA (@ 12V)
- Attitude control accuracy: ± 0.02 degrees
- Maximum controllable speed
- Rotation direction (PAN): ± 200 ° / s
- Tilt direction (TILT): ± 200 ° / s
- Rolling direction (ROLL): ± 200 ° / s
- Controllable rotation range
- Rotation direction (PAN): ± 125 °
- Tilt direction (TILT): -120 ° to + 80 °
- Rolling direction (ROLL): ± 50 °
- S-Bus / PPM / DSM receiver support
- Working environment temperature: -20 ℃ ~ +50 ℃
- Maximum size (with camera): 85mm * 100mm * 101mm

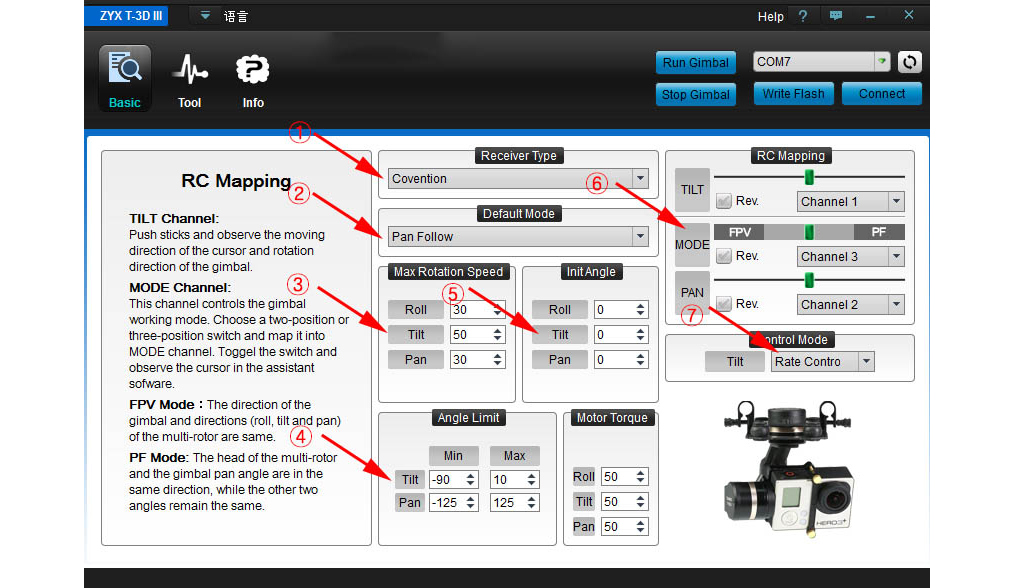

<Assistant Software Installation Requirements>
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
<Specifications>
- Metal triaxial FLID PTZ 191 g x 1

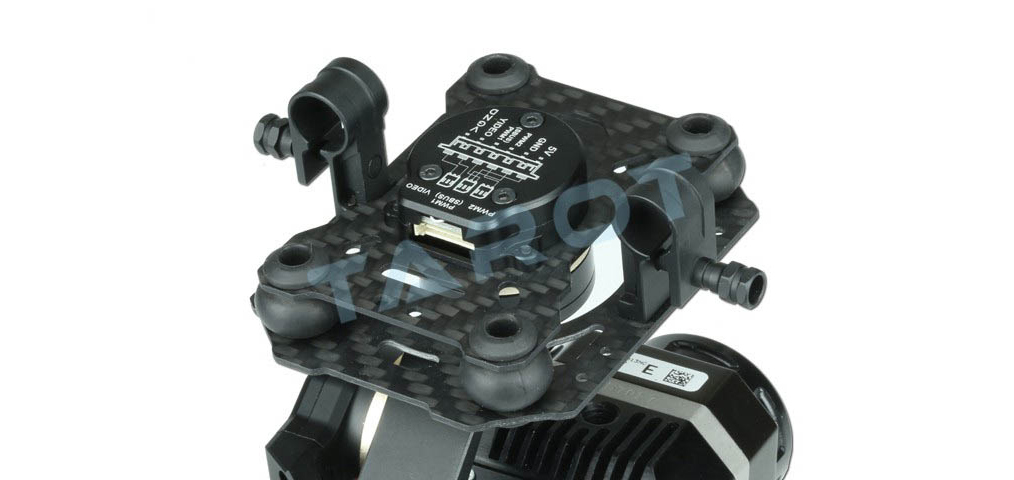

- PTZ master module (36 × 25 × 11MM) × 1
- 8P PTZ control and PTZ main cable × 1
- 5V output, receiver and video cable × 1
- USB module (27 × 21 × 7MM) × 1
- Flight control cable × 1

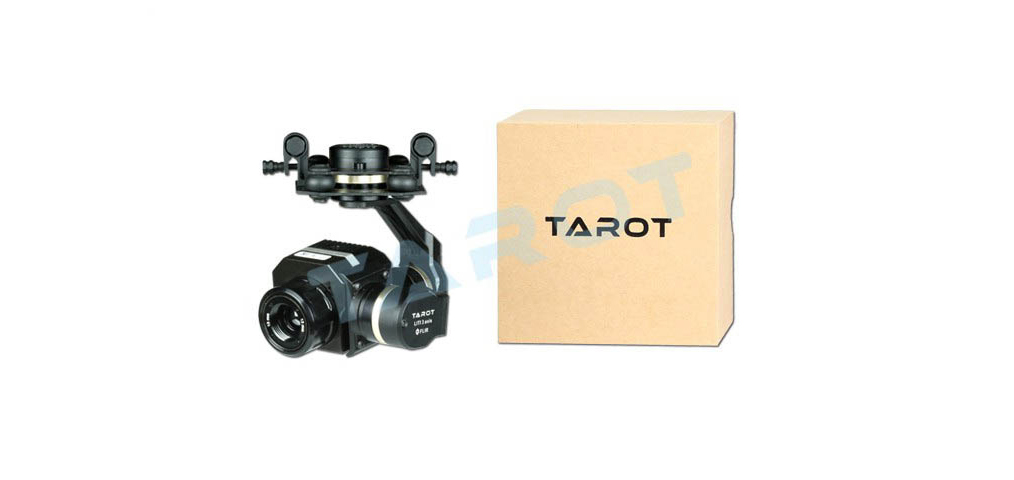

- Packing box × 1
<제품 이미지>

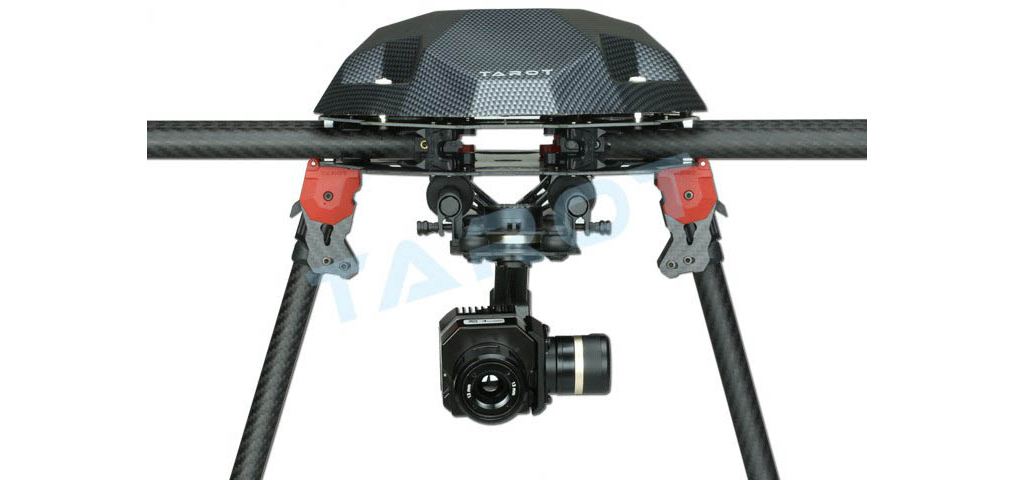

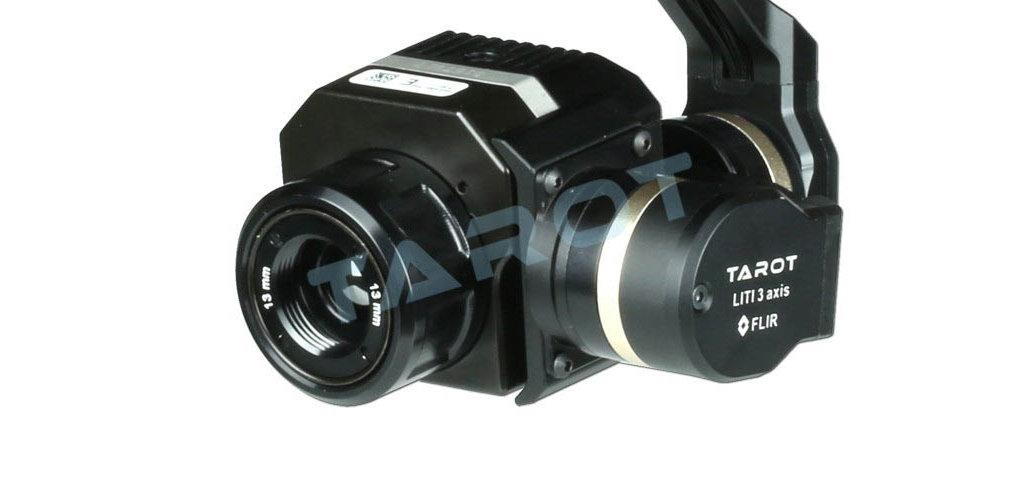

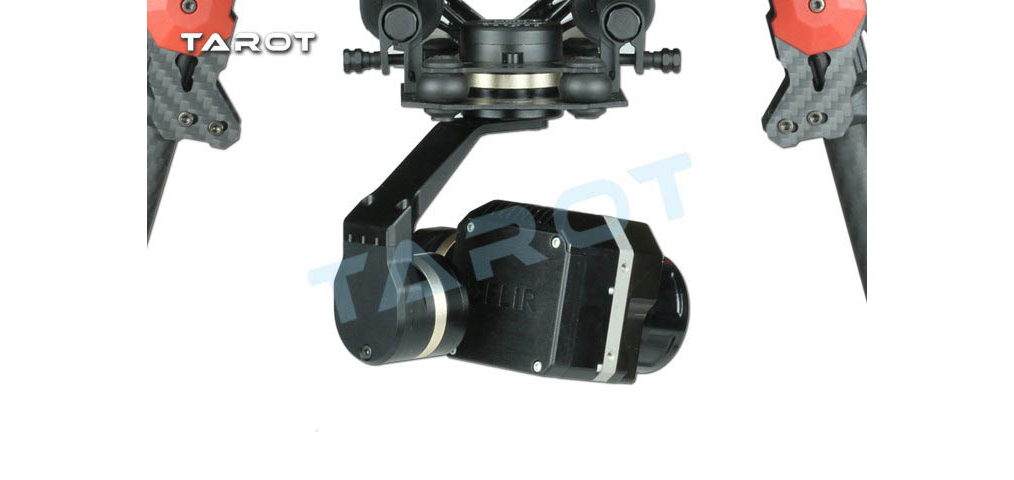

- 초경량(191g), Simple Structure 구조로 설계, 모든 Control Surface는 내부 Embedded 방식으로 외부 배선이 없이 깔끔하게 구성이 됩니다.(VUE PRO 카메라는 별매 입니다.)

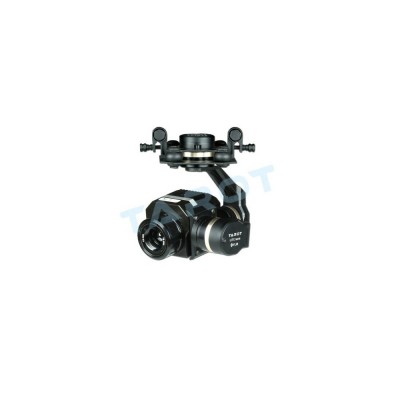

![[TAROT] FLIR VUE PRO Thermal Imaging 3X Gimbal System(w/o Camera)](http://drone-factory.co.kr/data/item/1671429165/thumb-41aa24cea1d4aca2c8a5ca3ffcd34f48_60x60.jpg)
