All sensors DLVR series is the best airspeed sensor ArduPilot currently support.
Specifications
Sensor: All sensors DLVR-L10D, Industrial temperature rangeDLVR-L10D Sensor datasheet, pls visit
www.allsensors.comInterface: I2C (SCL & SDA)Sensor I2C address: 0x28Pressure Ranges: 2500PaMaximum Pressure: 75kPaOperating Temperature: -25°C ~ 85°C
- Board Supply voltage: 4~5.5V DC
- Working current: 5mA
- Red LED: 3.3V power indicator

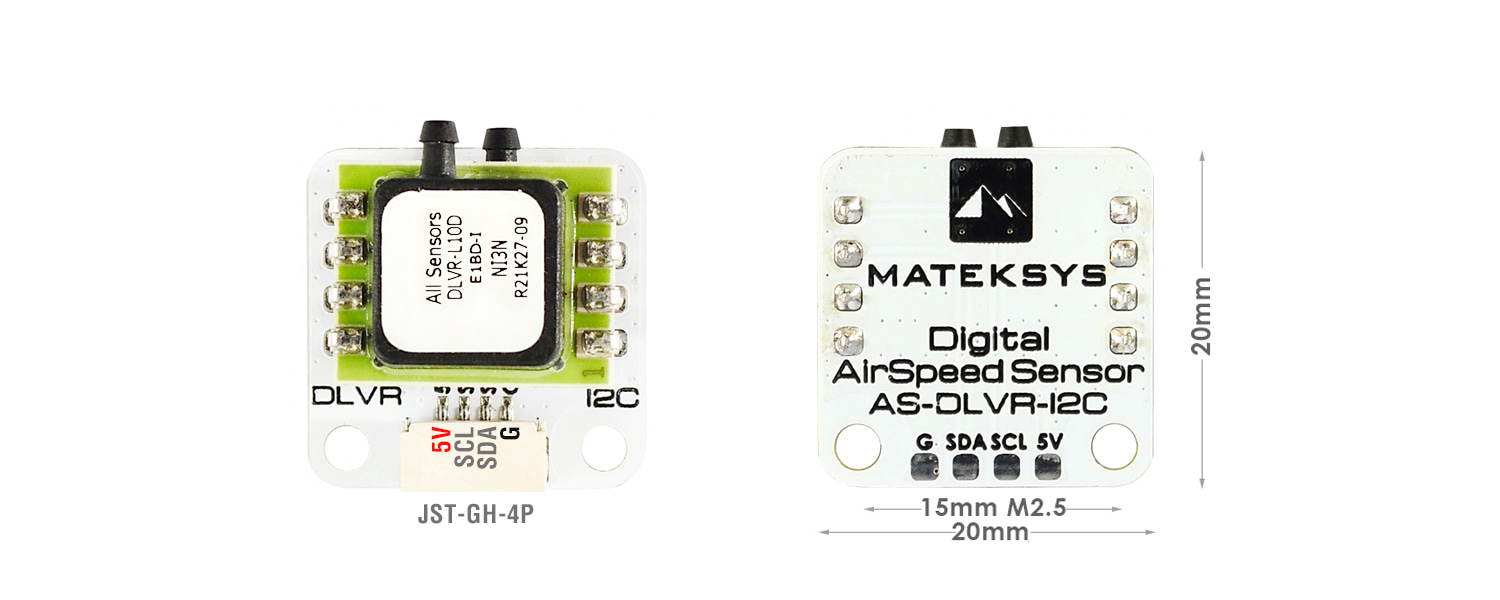

- JST-GH sequence: 5V, SCL, SDA, GND
- Weight: 3.5g (sensor board)

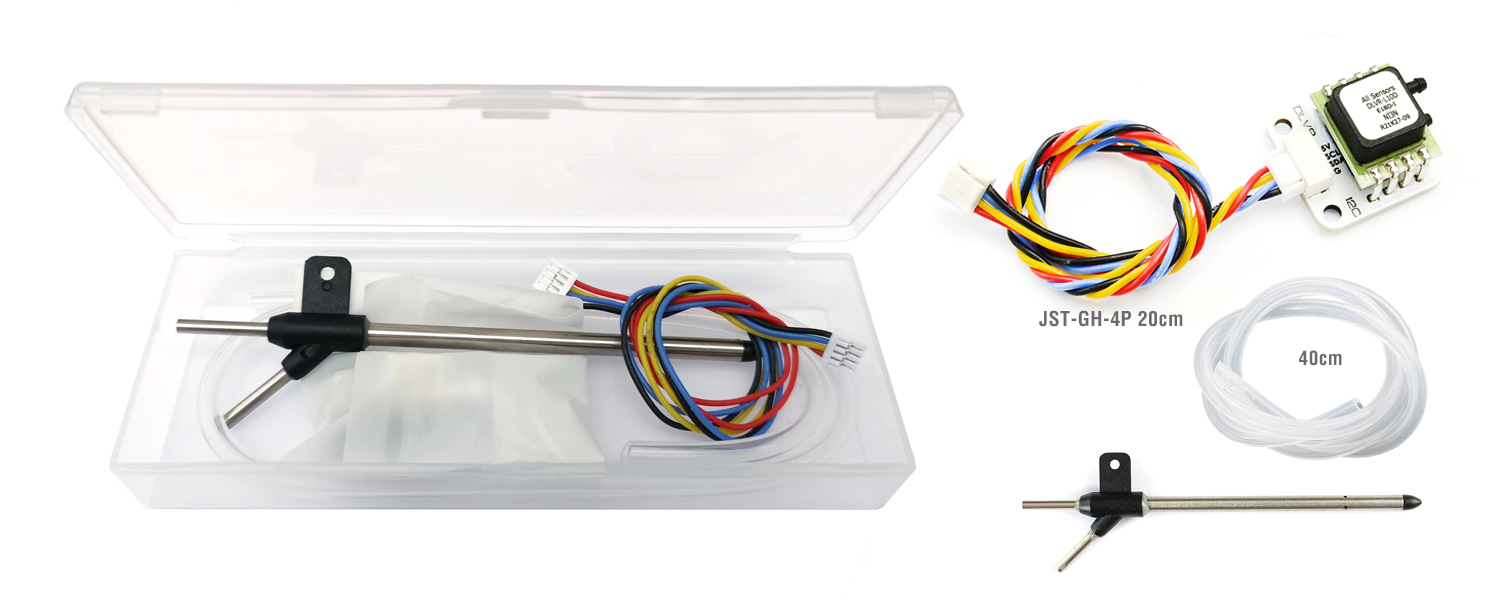

Including

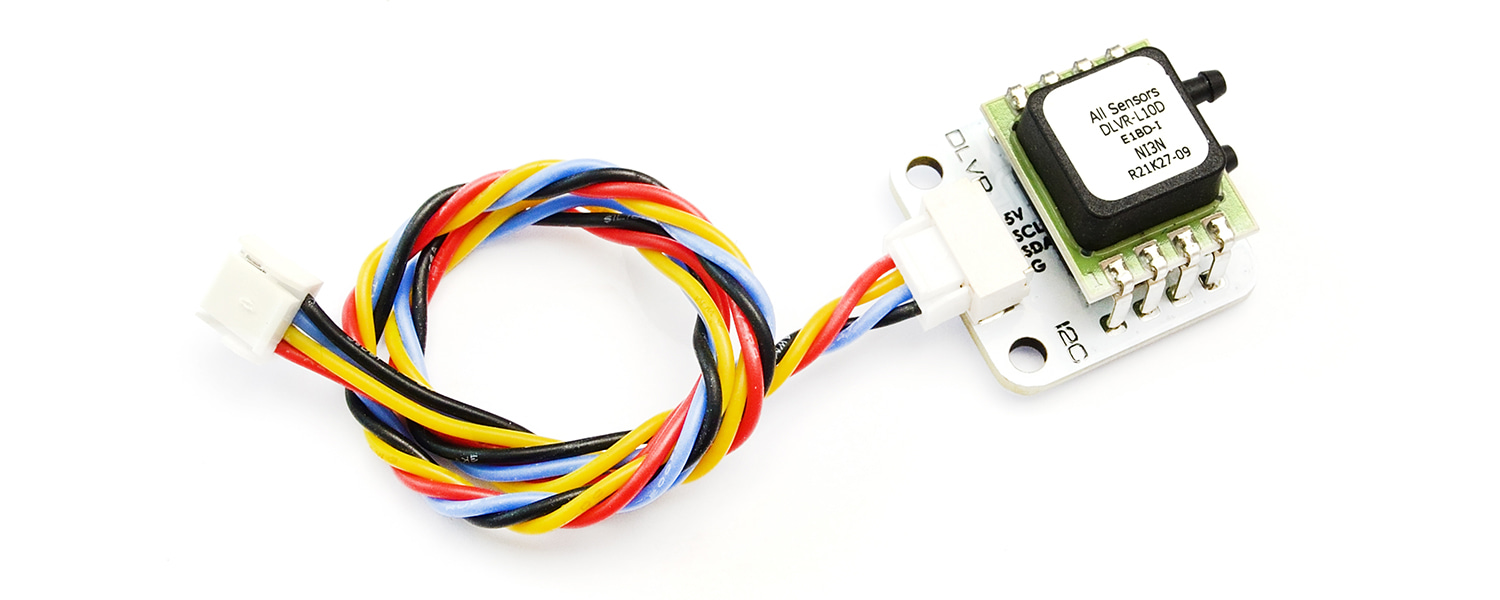

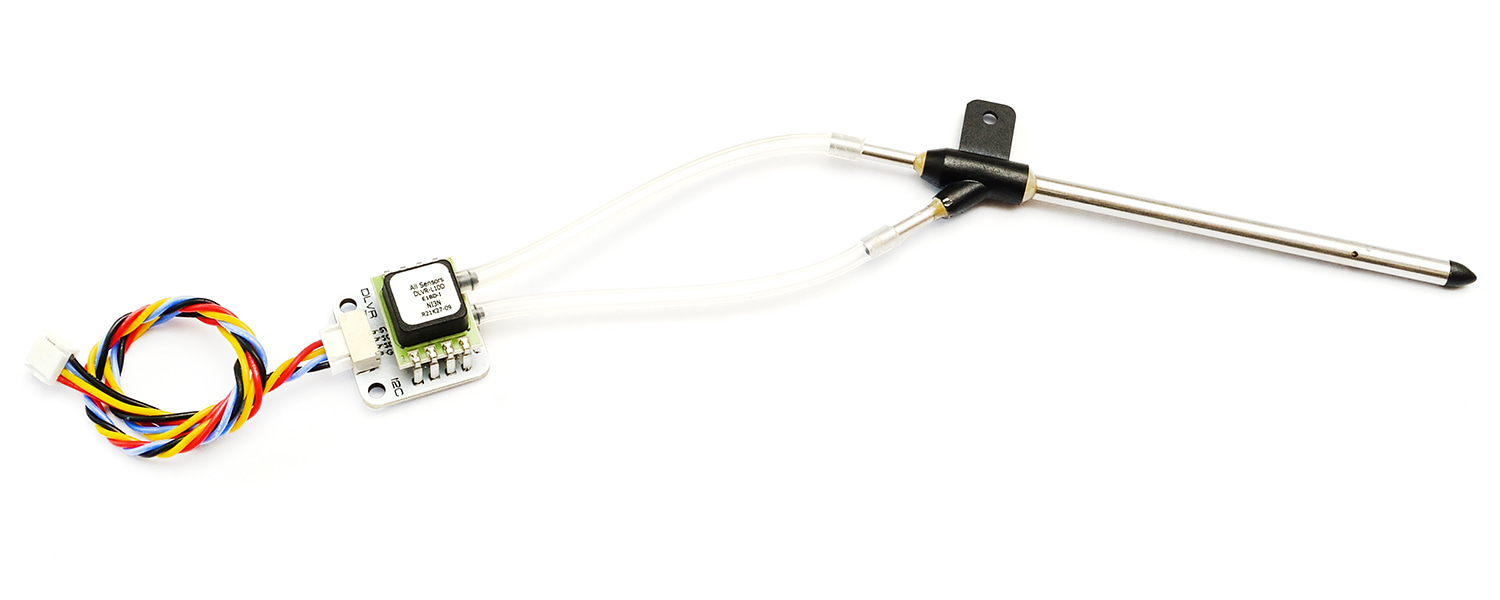

1x AS-DLVR-I2C Sensor Board.1x JST-GH-4P to JST-GH-4P 20cm silicon wirePitot Tube.Clear silicon tubing 40cm
Wiring
5V to FC 4~5.5VSCL to FC I2C_SCLSDA to FC I2C_SDAG to FC GND
Parameters
ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)
Tips
- Compatible with ArduPilot only for now, INAV doesn’t support it.
- AS-DLVR-I2C support I2C interface only. for CAN connection, pls visit ASPD-DLVR page, or use AS-DLVR-I2C with CAN Node L431
- 3D step file AS-DLVR_I2C_STEP.zip
