Featuring a Measurement Specialties 4525DO sensor, with 1 psi measurement range (roughly up to 100 m/s or 360 km/h or 223 mp/h), the Pix32 Airspeed Sensor Kit enables a resolution of 0.84 Pa, with data delivered at 14 bits from a 24 bit delta-sigma ADC. It also measures temperature to allow calculation of true airspeed from indicated airspeed using the MS5611 static pressure sensor on Pix32. Not influenced by the heat of nearby processing components, it is much closer to the air temperature than with previous ana log sensor setups. Supported on all Pix32 and PX4 autopilot generation boards, this kit comes with M3 / 6-32 mounting holes.

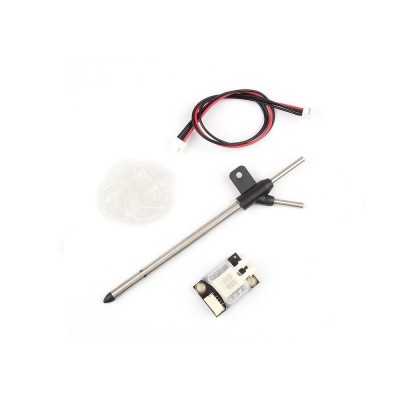

Digital Air Speed Sensor * 1
GH 4pin 150mm cable *1
Molex 4pin 150mm cable *1
Rubber tubing 400mm *1
Pitot tube *1
제품소재 | 상품페이지 참고 |
---|---|
색상 | 상품페이지 참고 |
치수 | 상품페이지 참고 |
제조자 | 상품페이지 참고 |
세탁방법 및 취급시 주의사항 | 상품페이지 참고 |
제조연월 | 상품페이지 참고 |
품질보증기준 | 상품페이지 참고 |
A/S 책임자와 전화번호 | 상품페이지 참고 |
사용후기가 없습니다.
상품문의가 없습니다.
배송 방법 | 택배 |
배송 지역 | 전국지역 |
배송 비용 | 3,500원 |
배송 기간 | 1일 ~ 3일 |
배송 안내 | - 산간벽지나 도서지방은 별도의 추가금액을 지불하셔야 하는 경우가 있습니다. 고객님께서 주문하신 상품은 입금 확인후 배송해 드립니다. 다만, 상품종류에 따라서 상품의 배송이 다소 지연될 수 있습니다. |
* 주의 : A/S 및 교환, 반품은 모든 포장재와 모든 구성품이 모두 있어야만 가능합니다.
